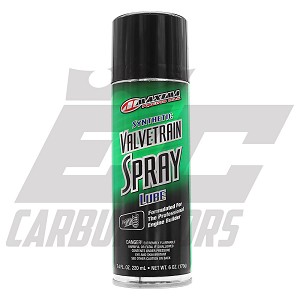

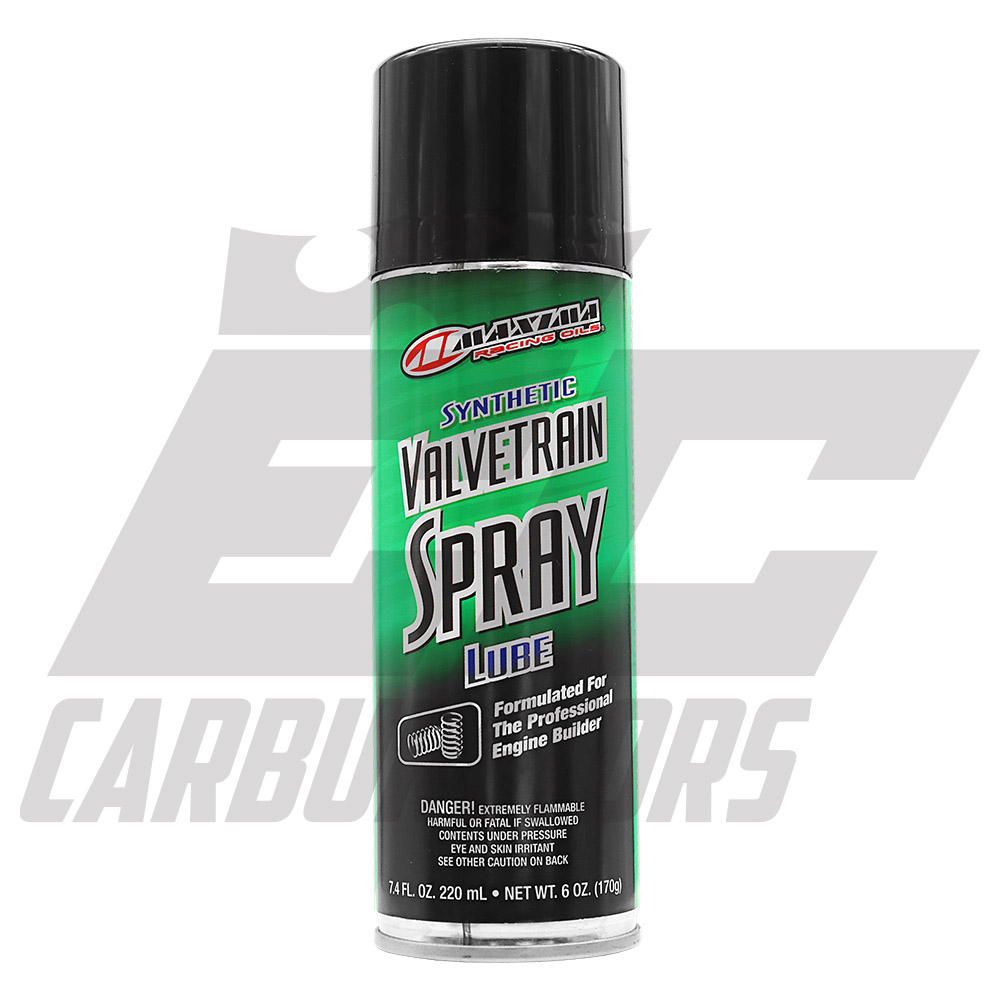

Maxima Racing Oil Synthetic Valvetrain Spray Lube

Maxima Racing Oil Synthetic Valvetrain Spray Lube – Methanol Racing Engine & Honda Clone Valve Train Lubricant

Protect Your Valvetrain Before the Engine Starts

Maxima Racing Oil Synthetic Valvetrain Spray Lube is a 100% synthetic aerosol lubricant formulated to protect high-performance valvetrain components from friction, wear, corrosion, and galling during engine startup and high-RPM operation.

For Honda Clone racing engines, Predator, Tillotson, Wildcat, Ducar, and other small engines used in karting and mini bike racing, this spray provides an easy way to lubricate critical upper-valvetrain components before the engine is started—particularly after an engine has been sitting, during break-in, or following exposure to methanol fuel. The ester-fortified, extreme-pressure formula quickly adheres to metal surfaces and helps provide lubrication before engine oil has fully reached the upper valvetrain. It is ideal for valve springs, rocker arms, pushrod ends, and other exposed valvetrain components.

Why Use Valvetrain Spray Lube on Honda Clone Racing Engines?

Most Honda GX200-style Clone engines used in karting and mini bikes rely heavily on splash lubrication. During startup, engine oil must make its way from the crankcase to the upper portions of the engine, meaning the valvetrain can have limited lubrication until oil circulation is established.

A light application of synthetic valvetrain spray before startup helps provide additional protection during this critical period.

It is especially useful on engines that:

• Have been sitting unused
• Are being started for the first time
• Are undergoing break-in
• Run high RPM
• Use aggressive valve springs and camshafts
• Run methanol-based racing fuel
• Are stored between races or during the off-season

Excellent Protection for Methanol Racing Engines

One of the most important uses for this product at EC Racing Products is protecting methanol-fueled Honda Clone racing engines from corrosion.

Methanol racing fuel can be particularly challenging for small-engine fuel systems and internal engine components. After racing, simply leaving methanol in the fuel system can contribute to corrosion and other storage-related problems.

Rather than relying on a traditional top-end lubricant mixed into the fuel, we recommend using a proper fuel-system flushing and engine-storage procedure.

Our Recommended Methanol Engine Procedure

After running a methanol racing engine:

1. Remove the methanol from the fuel tank.
2. Run an appropriate racing oil with dispersive additives(Maxima Racing Oil RS or  Performance 10w-40)through the engine as part of your flushing procedure.
3. Flush the carburetor and fuel system by starting the engine running on 2-cycle mix(Maxima Castor 927) or 8oz of Marvel’s Mystery Oil per 1/2 gallon of non-ethanol gasoline. Run until the engine runs rough or is puffing black exhaust.
4. Remove the valve cover.
5. Apply a light coating of Maxima Racing Oil Valvetrain Spray Lube to the valve springs, rocker arms, pushrod ends, and other exposed valvetrain components.
6. Reinstall the valve cover and store the engine appropriately.

This gives you an additional layer of protection against corrosion on critical valvetrain components without introducing a conventional top-end fuel lubricant into the carburetor and fuel system.

Why not simply add top-end lubricant to methanol?
Some fuel lubricants can leave deposits or gum up components in small-engine fuel systems and carburetors. This can be particularly problematic with diaphragm-style carburetors such as Tillotson carburetors and can make subsequent tuning more difficult.

Ideal for Race-Day Startup Protection

This isn't just a storage product. Maxima Valvetrain Spray Lube is also useful between race sessions. For engines that are being run through practice, qualifying, heat races, and feature events, a light spray under the valve cover can provide additional lubrication before the next startup. It's particularly useful when the engine has been sitting long enough for most of the engine oil to drain back into the crankcase.

Great for:

• Practice-to-qualifying maintenance
• Between heat races
• Race-day engine preparation
• Engines that sit between sessions
• High-RPM racing engines
• Methanol-fueled racing engines

Protect New Engines During Break-In

Factory-built engines typically aren't assembled with the same assembly lubricant used throughout a professionally built racing engine. A light application of Maxima Synthetic Valvetrain Spray Lube can provide additional lubrication to the upper valvetrain before the first startup and during initial operation. The synthetic formulation and extreme-pressure additives provide lubrication without requiring a heavy coating of assembly lubricant. Apply lightly. The purpose is to lubricate the valvetrain—not saturate the engine with oil.

Perfect for Engines in Storage

Whether you're putting a race engine away for the winter or your mini bike has been sitting in the garage for several weeks, valvetrain spray is an easy way to provide additional startup protection. As engine oil drains back toward the crankcase during storage, less oil may remain on exposed valvetrain components. Rather than tilting a mounted engine to allow crankcase oil to reach the valvetrain, simply remove the valve cover and apply a light spray before startup.

This is especially convenient on engines already installed in:

• Go-karts
• Mini bikes
• Race mowers
• Small recreational vehicles
• Custom engine applications

Key Features & Benefits

• 100% synthetic aerosol valvetrain lubricant
• Ester-fortified formula
• Extreme-pressure additives for high-load applications
• Helps reduce friction and wear
• Helps prevent galling at critical contact points
• Provides startup lubrication before engine oil reaches the upper valvetrain
• Helps protect against corrosion
• Adheres to metal surfaces
• Ideal for high-RPM racing engines
• Excellent for methanol-fueled racing engines
• Useful during engine break-in and storage
• Compatible with conventional and synthetic engine oils
• Easy aerosol application through the valve cover

Recommended Applications

Designed for upper-valvetrain components including:

• Valve springs
• Rocker arms
• Rocker arm pivots
• Pushrod ends
• Valve stems and related contact areas
• Other exposed valvetrain components

Small Engine Applications

Ideal for:

• Honda GX200
• Predator 212 / 224
• Tillotson 196 / 212 / 225 / 236 / 240
• Wildcat 223 / 240
• Ducar 196 / 212 / 224
• Other Honda Clone racing engines
• Go-kart racing engines
• Mini bike racing engines
• Small-engine performance builds

How to Apply

Remove the valve cover and apply a light, even coating to the exposed valvetrain components.

Focus on areas such as:

• Valve springs
• Rocker arms
• Pushrod ends
• Other metal-to-metal contact points

Do not excessively saturate the valvetrain. Reinstall the valve cover before starting the engine. For engines exposed to methanol, use the spray as one part of a complete fuel-system flushing and storage procedure, not as a substitute for properly removing methanol from the fuel system.

A Simple Step for Better Engine Protection

Whether you're assembling a new Honda Clone racing engine, preparing a Tillotson for race day, storing a Wildcat engine after a season, or protecting a methanol-fueled mini bike engine between events, Maxima Racing Oil Synthetic Valvetrain Spray Lube provides an easy way to put fresh lubricant directly where it's needed.

Protect the valvetrain before the engine starts.
